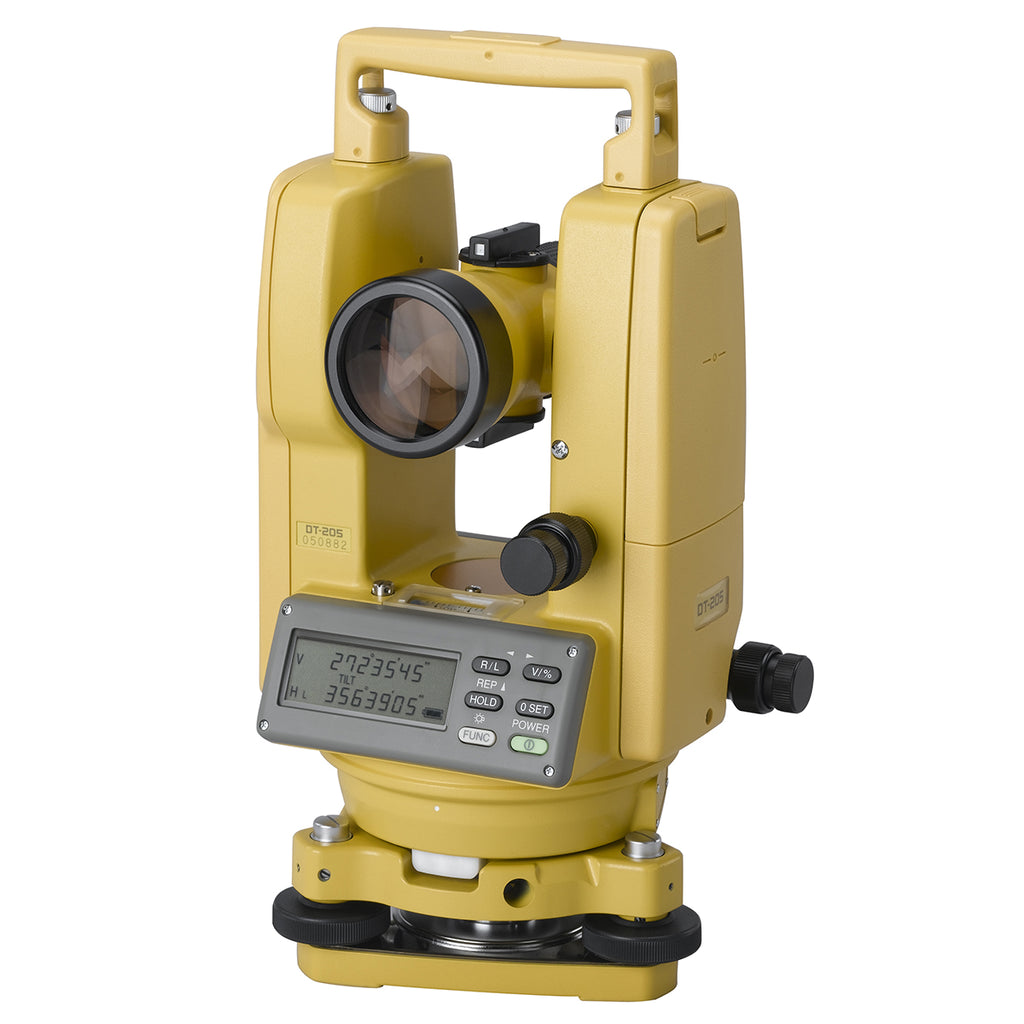

Topcon DT 200 Series Theodolite

Model: Topcon DT209 Theodolite
£2,010 exc. VAT


TopCon DT 200 Series Theodolite Brochure

Horizontal and vertical angles with absolute confidence

totaLightweight and compact angular measurement device

The DT-200 series integrates the same high-quality advanced absolute circle reading technology found in Topcon high-performance total station products for high accuracy field calculations.

  • IP66 water and dust protection
  • Compact and light weight
  • Long-life 140 hour battery
  • Absolute H & V angle encoder
  • High accuracy (2", 5”, 7” and 9” models) measurements

Work fast, with precision

With our DT-200 you'll be up and working fast, thanks to its simple interface and large, easy-to-see backlit LCD.

There's an optical plummet that makes set up over a control point easy, and a tilt sensor that provides ±3 minute angle correction.

With a range of angular accuracies available, only Topcon can offer the precision, durability, and advanced technology found in the DT-200 series.

Laser Theodolites

L = Laser

Each model is available with a red Class II laser beam (e.g. DT205L, DT207L and DT209L)

These models have the same specifications as the basic models with the addition of the accurate red beam.

Use it anywhere on site and see clearly in direct sunlight up to 165ft.

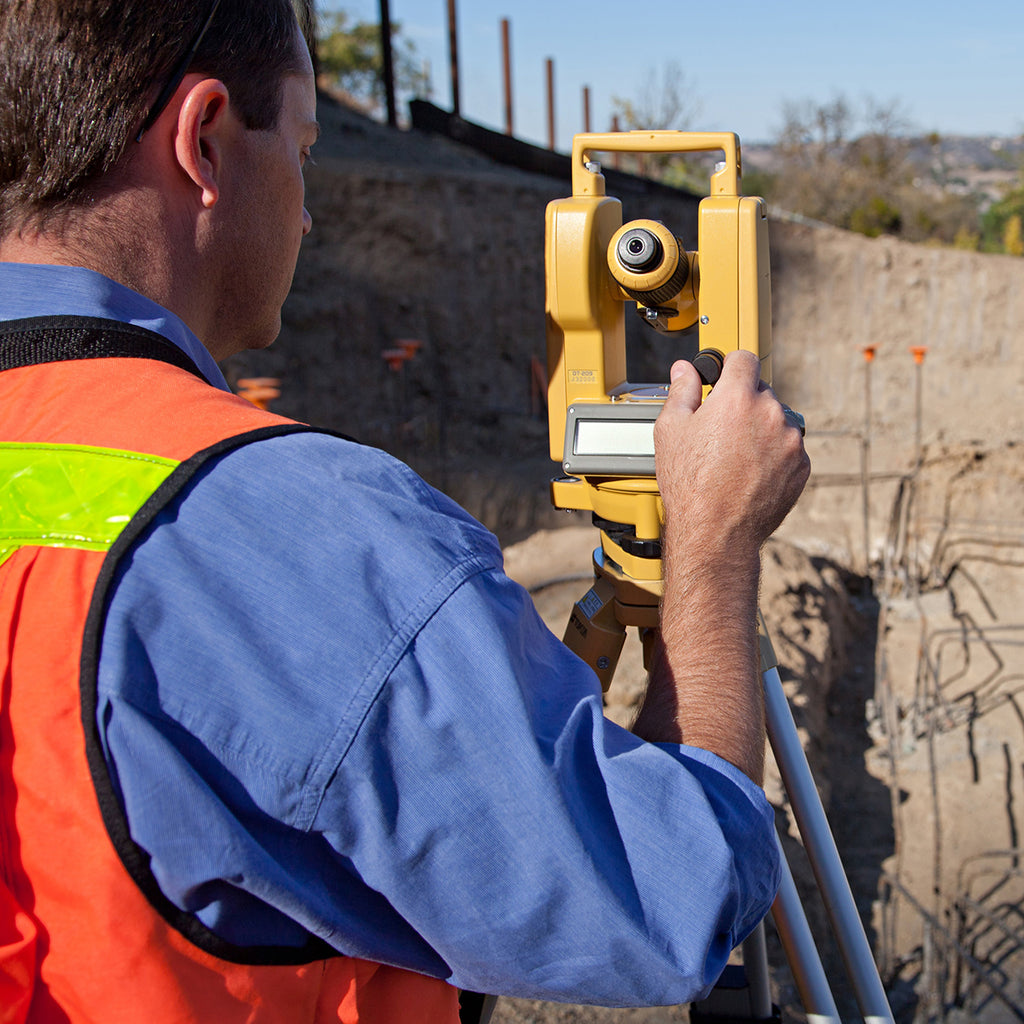

  • Construction Survey/Layout
  • Layout & Survey

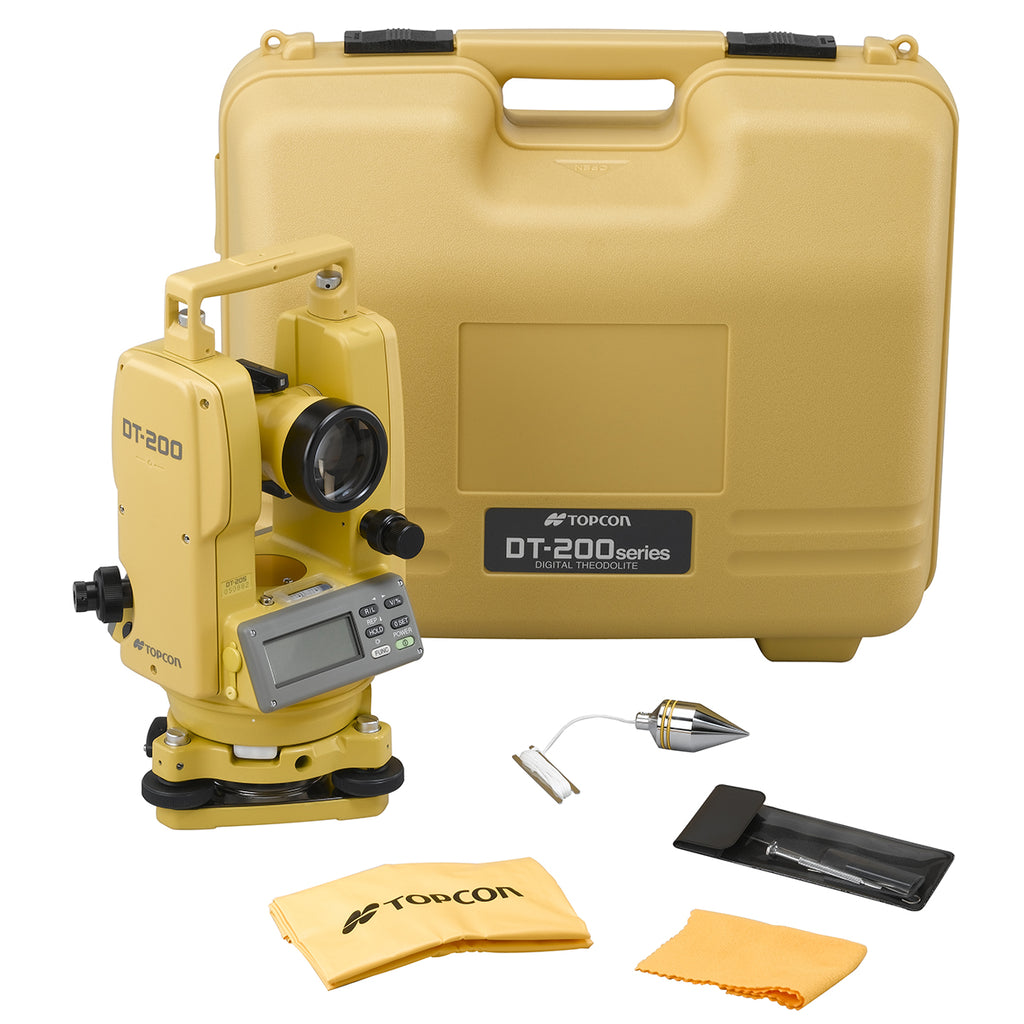

Comes with

  • Instrument
  • Plumb bob
  • Tool kit
  • Lint free lens cloth
  • Hard shell carry case
